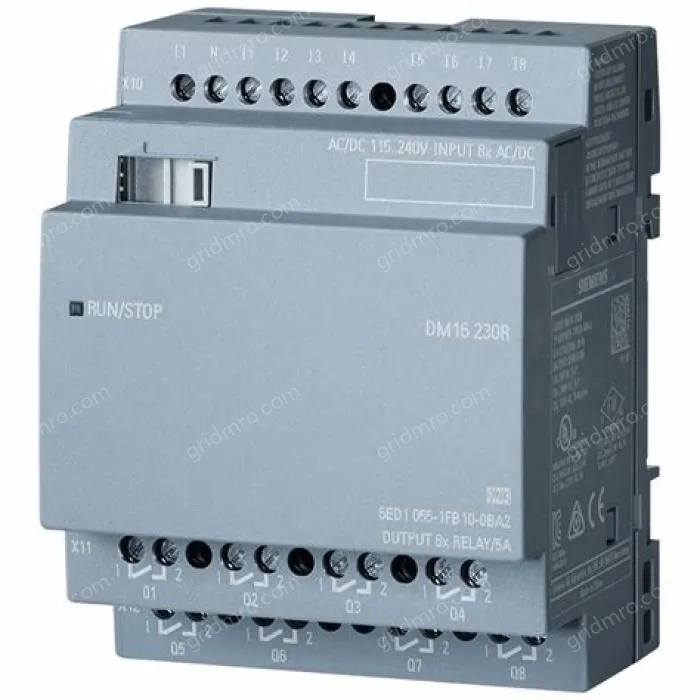

      6ED1055-1FB10-0BA2 LOGO! DM16 230R, EXP. MODULE,
      Artikelnummer6ED1055-1FB10-0BA2
      LOGO! DM16 230R, EXP. MODULE, PU/I/O: 230V/230V/RELAIS, 4TE, 8 DI/8 DO FOR LOGO! 8
      Installation type/mounting
      Mountingon 35 mm DIN rail, 4 spacing units wide
      Supply voltage
      115 V DCYes
      230 V DCYes
      permissible range, lower limit (DC)100 V
      permissible range, upper limit (DC)253 V
      115 V ACYes
      230 V ACYes
      Line frequency
      ● permissible frequency range, upper limit63 Hz
      Digital inputs
      Number of digital inputs8
      Input voltage
      ● Type of input voltageAC/DC
      ● for signal "0"< 40 V AC; < 30 V DC
      ● for signal "1"> 79 V AC, > 79 V DC
      Input current
      ● for signal "0", max. (permissible quiescent current)0.06 mA
      ● for signal "1", typ.0.37 mA
      Input delay (for rated value of input voltage)
      for standard inputs
      — at "0" to "1", max.40 ms
      — at "1" to "0", max.75 ms
      Digital outputs
      Number of digital outputs8
      short-circuit protectionNo
      Controlling a digital inputYes
      Switching capacity of the outputs
      ● Lamp load, max.1 000 W; 500 W at 115 V AC
      Output current
      ● for signal "1" rated value5 A
      Parallel switching of 2 outputs
      ● for increased powerNo
      Switching frequency
      ● with resistive load, max.2 Hz
      ● with inductive load, max.0.5 Hz
      ● mechanical, max.10 Hz
      Relay outputs
      Switching capacity of contacts
      — with inductive load, max.3 A
      — with resistive load, max.5 A
      EMC
      Emission of radio interference acc. to EN 55 011
      ● Limit class B, for use in residential areasYes
      Degree and class of protection
      Degree of protection to EN 60529
      ● IP20Yes
      Standards, approvals, certificates
      CSA approvalYes
      UL approvalYes
      FM approvalYes
      Developed in accordance with IEC 61131Yes
      according to VDE 0631Yes
      Marine approval
      ● Marine approvalYes
      Ambient conditions
      Operating temperature
      ● Min.0 °C
      ● max.55 °C
      Dimensions
      Width71.5 mm
      Height90 mm
      Depth58 mm
      last modified:14.10.2014
